921.16473 #01B3CE
Loading Schematic
Model Numbers: 921.16473
Craftsman Oil-Free Single-Stage Electric Air Compressor 921.16473 Repair Parts
-
Drain Valve, 1/4" NPT #1163AE
Price: $3.30Old Part Numbers: 072-0006Replace this air compressor drain valve if leaking or will not work. Prevent rust from ruining your tank by draining your tank daily. Keep an extra around for a spare. This...Price: $3.30 -
Safety Relief Valve, 1/4" MPT, 170 PSI #11632B
Price: $11.48Old Part Numbers: SRV250170, 1229O-170Air compressor safety relief valve, 1/4" MPT, 170 PSI. If your valve leaks below the pressure listed on the side of the valve, replace this vital safety feature...Price: $11.48 -
Right Angle Unloader Valve, Condor EV1WSi #0596B3
Price: $26.58Old Part Numbers: 5140119-60, EV1WSIPressure switch unloader valve for Craftsman/Powermate air compressors. When the air compressor reaches the maximum air pressure, this valve bleeder releases the...Price: $26.58 -
O-Ring, 1-1/2" #0590E6
Price: $6.44Old Part Numbers: ST070191AV-MATO-ring for the main air tank bushing on an air compressor (where the drain valve is).Price: $6.44 -
1/4" Compression Nut & Sleeve #1163D2
Price: $1.80Old Part Numbers: 60-4-61-4, 058-0017-MAT1/4" compression nut and sleeve. Order two, one for each end of the tube.Price: $1.80 -
Air Regulator, 1/4" FPT, 4-Port #0E5375
Price: $14.59Universal Regulator: 4-port, two 1/4" FPT ports, and two 1/8" FPT ports (gauges sold separately here). The regulator controls the amount of air in your air compressor hose. Replace this if you're not...Price: $14.59 -
Bushing #059020
Price: $34.941-1/2" NPSM x 1/4" NPT Bushing Reducer. NOTE: Also order the 513-0002 o-ring seal to complete the repair.Price: $34.94 -
Pressure Switch, 120/150 PSI #059617
Price: $93.06120/150 PSI pressure switch for air compressors. If your valve is leaking on the side of the switch, do not order this part. Order check valve instead.Price: $93.06 -
Check Valve, 1/2" NPT x 3/8" with 1/4" Bleeder Port, 100664101 #05960E
Price: $22.323-way check valve. If the small unloader (bleeder) valve on or under your pressure switch leaks constantly AFTER the unit shuts off, replace this part. The check valve is a one-way valve that...Price: $22.32 -
Price: $16.39 -

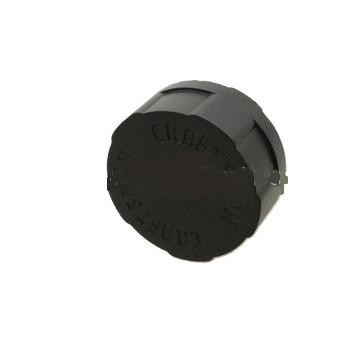

Filter Assembly #059607
Price: $27.78Old Part Numbers: 019-0277Protect your pump from damage. Includes element and housing. This assembly includes the filter element and housing. 1/2" NPT threads.Price: $27.78 -
Bleeder Tube, 1/4" #058F9A
Price: $26.46Old Part Numbers: 145-03881/4" OD Nylon Tube. Connects the Unloader Valve on the Pressure Switch to the Check Valve in the tank (for electric units). For gas-powered units, it connects from the...Price: $26.46 -
VALVE PLATE ASSEMBLY F3C2 #059633
Price: $72.64This assembly includes items 5 & 7. Poor performance or air leaks out of the intake filter while the unit is running? The valve plate assembly is probably the problem.Price: $72.64 -
Price: $34.64 -
Price: $83.96 -
Price: $32.06 -
Price: $17.44 -
Pressure Gauge, Left-Hand Connect #05A5E0
Price: $21.54Pressure Gauge, 1/8" LH connect, 300 PSI. Note: Order this for 25 gal horizontal units.Price: $21.54 -
Pressure Gauge, Right Hand Connect #05A5DE
Price: $21.54Pressure Gauge, 1/8" RH connect, 300 PSI. Note: Order this for 25 gal horizontal units.Price: $21.54 -
Price: $35.12 -
CAPACITOR RUN F3C2 #05963F
Price: $50.95Please note: Capacitors can not be returned for a refund unless proven to be defective.Price: $50.95 -
Price: $26.18 -
Price: $1.40 -
Price: $13.45
-
Price: $24.64 -
Price: $14.53
-
Price: $54.07
-
Price: $12.92
-
Price: $16.55
