Description
Old Part Numbers: B6000

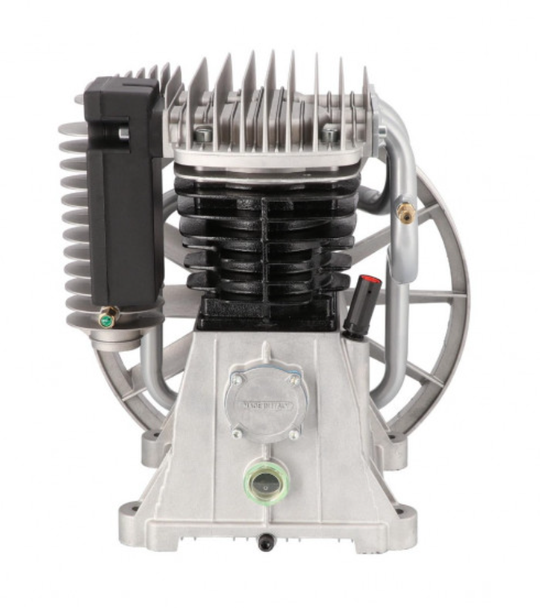

Complete B6000 replacement pump assembly with flywheel and air filter. For 5 - 7.5 HP applications.
Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.
Specifications
- HP: 5 - 7.5 HP
- Stages: Two-stage, In-Line Twin-Cylinder
- Drive: Reciprocating / Oil-Bath
- CFM Delivery: 24.2 CFM @ 100 PSI (w/ 7.5 HP motor)
- Max PSI: 175 PSI
- Material of Construction: cast-aluminum with steel sleeves
- Flywheel: 16.93" OD, double "A" groove
- RPM: 700 / 1,400 (depending on pulley diameter)
- Oil Capacity: 2.3 qts.
- Weight: 30 lbs.
- Bore & Stroke: 4.33" x 2.36" (LP) / 2.36" x 2.36" (HP)
- Bolt Pattern: 7.80" front-to-back, 9.76" side-to-side
- Duty Cycle: 60%
- Outlet: 1/2" FPT (exhaust on the left side of the pump head when looking opposite the flywheel)
- Warranty: 1 year limited
Extra Details
Torque Specifications:
- Head Bolts: 340-390 in/lbs
- Air Filter Bolts: 165-205 in/lbs
- Aftercooler Bolts: 340-390 in/lbs
- Intercooler Bolts: 200-240 in/lbs
- Conrod Bolts: 200-240 in/lbs
- Bearing End Cap Bolts: 800-100 in/lbs
- Oil Pan Bolts: 70-115 in/lbs
- Flywheel Bolt: 200-390 in/lbs
