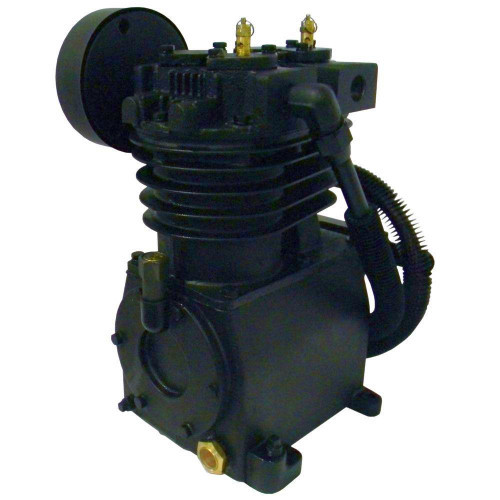

Air Compressor Pump Replacement without Flywheel, Two-Stage, 5 HP #058FF8

Air Compressor Pump Replacement without Flywheel, Two-Stage, 5 HP. Just add oil, install your original flywheel, and bolt on!

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP: 5 HP
• Stages: Two-Stage
• SCFM Delivery: 18 CFM @ 90 PSI
• Max PSI: 175 PSI
• Material of Construction: cast-iron with steel sleeves
• Flywheel: N/A (not included)
• RPM: 690 Max
• Duty Cycle: Continuous duty (although 50/50 recommended)
• Bolt Pattern: 6.25" (F-B) x 9.0" (S-D)
• Oil Capacity: 18.5 oz.
• Weight: 145 lbs.
• Warranty: 1 year limited for Residential use / 90 days for Commercial use

• High efficiency individual concentric disc and spring valves
• Precision machined steel pistons
• Oversized taper roller bearings
• Splash type lubrication
• Oil level sight glass
• Easily accessible oil fill
• 175 PSI maximum working pressure
