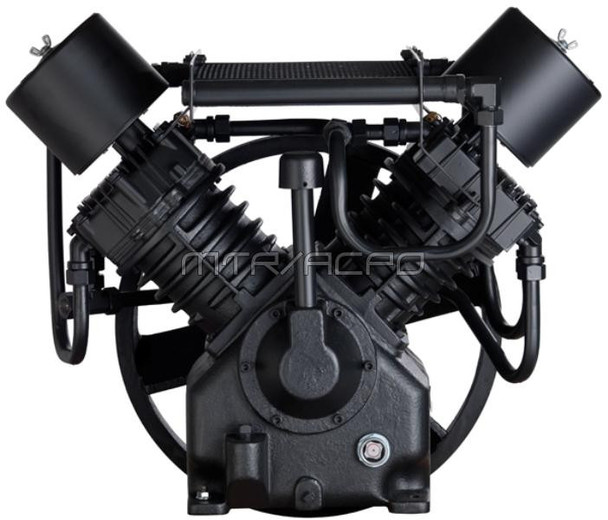

Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 15 HP #1163AA

Two-stage, v-twin air compressor pump replacement. Complete assembly with flywheel and air filters. Rated at 15 HP.

Note: Order this item for model CI15K000PC.

Important: This pump comes with a 19.5" OD flywheel. If your old pump has the smaller 16.5" OD flywheel, you will need to change out the belts or you will need to order the 16.5" OD flywheel (part number PU016700AJ).

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP: 15 HP
• SCFM Delivery: 50 SCFM @ 175 PSI
• Max PSI: 175 PSI
• Material of Construction: cast iron with steel sleeves; stainless steel valves for long life
• Flywheel: 19.5" OD Double "B" groove (4L-style), 1.36" ID
• RPM: 800 / 1,020 (depending on pulley diameter)
• Duty Cycle: 80/20
• Oil Capacity: 4 qts.
• Weight: 245 lbs.
• Dimensions (LWH): 19.5" x 28.45" x 24.28"
• Bolt Pattern: 8.06" front-to-back, 9.63" side-to-side
• Bore & Stroke: 4.55" x 3" (LP) / 2.3" x 3" (HP)
• Outlet: 3/4" FPT (exhaust on the left side of the pump head when looking opposite the flywheel)
• Warranty: 1 year limited from the date of purchase
