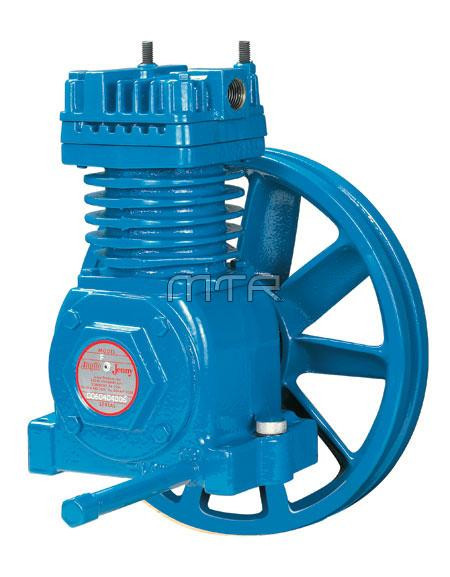

Emglo / Jenny F Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 1/3 - 1 HP #0576C8

Complete "F" model replacement pump for air compressors, with flywheel and air filter. For stop/start applications. Ready to bolt on and run. Just add oil. Made in the USA.

• HP Rating: 1/3 - 1 HP
• Stages: Single-Stage, Single-Cylinder
• Drive: Reciprocating / Oil-Bath
• CFM Delivery (CFM output is dependent upon the horsepower of the motor): 1/2 HP = 2.2 CFM @ 125 PSI (Delivered CFM) / 3/4 HP = 3.1 CFM @ 125 PSI (Delivered CFM)
• Max PSI: 150 PSI
• Material of Construction: cast iron with steel sleeves
• Flywheel: 10.375" OD single "A" groove
• RPM: 680 / 1,080
• Weight: 36 lbs.
• Bore & Stroke: 2.5" x 1.75"
• Bolt Pattern: 3-3/8" front-to-back, 5-9/16" side-to-side
• Dimensions (LWH): 7-3/4" x 10-3/8" x 11-1/2"
• Duty Cycle: 80/20
• Outlet: 3/8" FPT
• Warranty: 1 year limited

If you are replacing an older pump not with serial number beginning with G, then you will need a new belt guard and belt. This pump is 1" taller to hold more oil.

New flywheel size is 10.375" in diameter. If you have the larger 13.25" flywheel, determine the new pulley size for the motor by measuring the outside diameter (OD) of the existing pulley and multiply this number x .75 to come up with the correct new size.

Example:

4.25
x.75
3.1875" pulley (this can be rounded to the nearest pulley size, 3.25" or 3", for instance).

To find out which size belt you will need, simply go to this page and enter the below dimensions:

Belt Length Calculator

• This new-style F pump is for serial numbers starting with "G" (old pumps started with letters A - F).
• The crankcase is 1" taller to hold more oil.
• Same as FU, except it does not have head unloaders.
• Has single-groove, 10.375" diameter flywheel.
