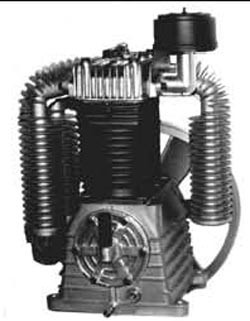

K50 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 7.5 HP #07F9E3

Complete K50 air compressor pump assembly includes flywheel, intercooler, and aftercooler. For 7.5 - 10 HP units. 16.01 CFM @ 175 PSI with a 7.5 HP motor 23.63 CFM @ 175 PSI with a 10 HP motor. Run at 800 RPMs with 7.5 HP and 1100 RPMs with 10 HP motor. Does NOT ship with oil.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

Specifications

• HP: 7.5 to 10 HP
• CFM Delivery: 16.01 CFM @ 175 PSI (7.5 HP) / 23.63 CFM @ 175 PSI (10 HP)
• Max PSI: 200 PSI
• Material of Construction: aluminum with steel sleeves; stainless steel valves for long life
• Flywheel: 17.72" OD double "B" groove
• RPM: 800 / 1,100 (depending on pulley diameter)
• Oil Capacity: 59 oz.
• Weight: 180 lbs.
• Dimensions (LWH): 16.53" x 18.11" x 25.98"
• Bore & Stroke: 4.72" x 3.74" (LP) / 2.36" x 3.74" (HP)
• Bolt Pattern: 8.26" front-to-back, 11.41" side-to-side
• Outlet: 1-1/4" FPT
• Warranty: 1 year limited
