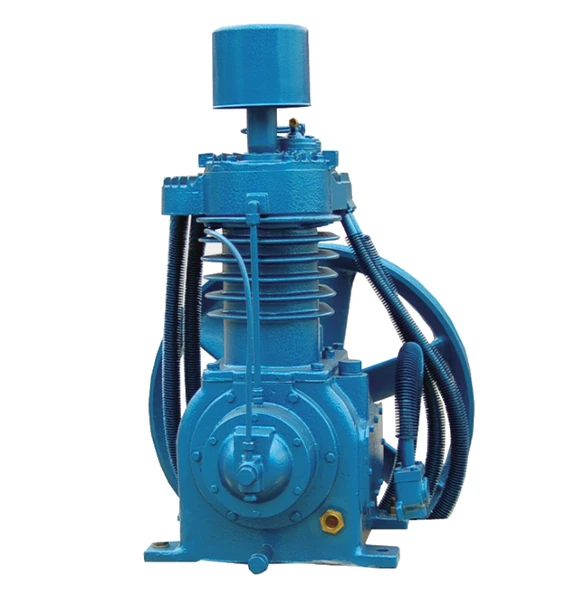

New Kellogg 352 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 7.5 - 10 HP #01871C

Kellogg 352 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 7.5 - 10 HP (with head unloader option). Can be used for both gas/electric constant run or electric start/stop.

• Steel Rods with Automotive Type Inserts and Needle Bearings at Wrist Pins
• Positive Ring Fed Lubrication
• Centrifugal Unloading
• Head Unloading
• Complete with flywheel and air filter assembly

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP Rating: 7.5 to 10
• Stages: Two-Stage
• Drive: Reciprocating / Oil-Bath (splash-lubricated)
• CFM Delivery: 34 Displaced CFM @ 175 PSI (10 HP) / 35.2 Displaced CFM @ 100 PSI (10 HP)
• Max PSI: 200 PSI
• Material of Construction: cast iron with steel sleeves
• Flywheel: 25.25" OD four "B" groove
• RPM Range: 520 / 627
• Oil Capacity: 2 qts.
• Weight: 520 lbs.
• Bore & Stroke: 5.5" x 5" (LP) / 3" x 5" (HP)
• Dimensions (LxWxH): 25.25" x 14.5" x 30.5"
• Bolt Pattern: 10" (front-to-back) / 14.5" (side-to-side)
• Outlet: 3/4" FPT (exhaust on the right side of the pump head when looking at the front of pump opposite the flywheel)
• Warranty: 1 year limited

Warranty Terms:

1. Ship the pump in to the manufacturer. It will be disassembled and repaired. Customer will be responsible for ALL shipping costs and labor involved with the repair.
2. Customer can choose to break the pump down, diagnose the problem, and repair it. Customer pays for shipping of the required repair parts.
3. Customer can purchase another pump and send the damaged pump back for repair. Once it’s repaired, the manufacturer will ship it back to the customer. The customer is responsible for ALL shipping costs.
