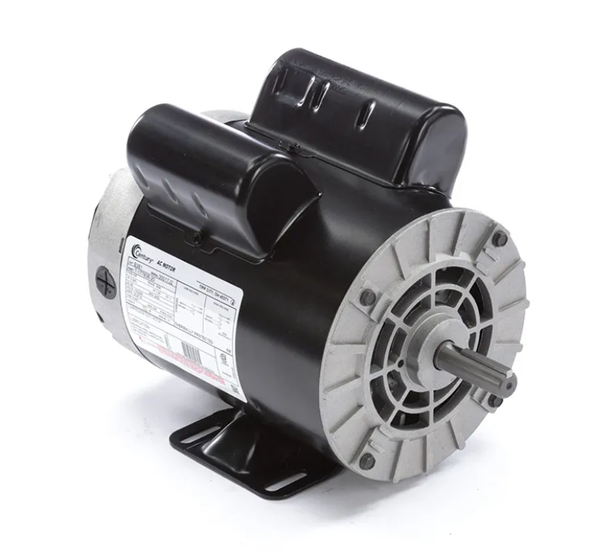

Century Electric Motor, 115/230 V, Single-Phase, 2 HP #018A40

Century electric motor for air compressors.

A very popular air compressor replacement motor, the B381 is UL-recognized and CSA-certified. High starting torque achieves a higher starting load required in air compressor applications. Capacitor-start and capacitor-run for low-amp, high-efficiency operation.

Specifications

• Brand: Century
• Model: B381
• Power: 2 HP
• Voltage: 115/230 VAC
• Phase: 1
• Frequency: 60 Hz
• Amperage: 15.0/7.5
• Speed: 3,600 RPM
• Number Of Speeds: 1
• Rotation: CCW
• Service Factor: 1.0
• Bearings: Ball
• Thermal Overload Protection: Manual
• Enclosure: ODP
• Frame: 56
• Base: Rigid
• Base Mount: Four holes on 4.5" to 5-1/2" x 7-1/2" centers
• Shaft: 5/8" diameter x 1-7/8" length
• Size: 11.3" x 6.5" x 8.14"
• Shipping Weight: 27 lbs
