New CALAIR 5 HP 80 Gallon Oil-Bath Electric Stationary Air Compressor #11665D

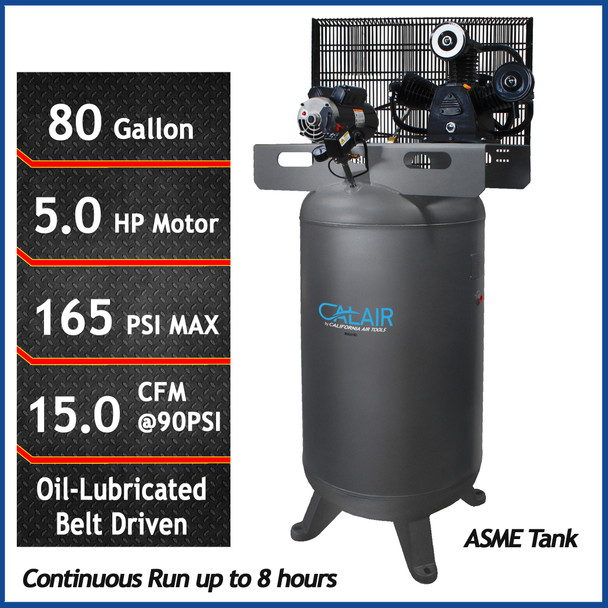

The new CALAIR 80050BD powerful 5.0 HP Oil-Bath 80 Gallon Reciprocating Electric Stationary Air Compressor is designed for continuous running up to 8 hours at 90 PSI.

The CALAIR 80050BD Air Compressor has a pump system that is designed to have a life cycle before maintenance/service of 5,000 to 10,000 hours of usage.

The large, 80 gallon ASME Certified steel air tank is just the right size for a shop, warehouse or factory, and is ideal for air brushing, bolting, brad nailing, cutting, drilling, grinding, finish nailing, framing nailing, HVLP painting, hobby nailing, hobby painting, inflation, roof nailing, spraying, stapling, trim & impacting/wrenching. The 80050BD is designed for people looking for reliable air flow in commerical and industrial environments.

The 80050BD puts out 17.5 CFM @ 40 PSI and 15 CFM @ 90 PSI, giving you all the compressed air you need for a variety of tasks, and operates on 208 Volts (200V-216V) to 230 Volt (220V-240V) / 60 Hz / Single-Phase power.

Specifications

• HP: 5.0 HP motor w/ reset switch (1,072 RPM)
• Decibel Rating: 90
• Pump Type: Belt-driven pump (Oil Type ISO 68 / LDAB68) 5,000 to 10,000 hour life.
  • Single-stage pump (3 cylinders)
• Working Pressure: 135-165 PSI
• CFM Delivery: 20 CFM @ 40 PSI / 16.8 CFM @ 90 PSI
• Voltage: 208 Volts (200V-216V) to 230 Volt (220V-240V) / 60 Hz / Single-Phase power
• Amperage: 24 Amps
• Time to fill tank from empty to full (155 PSI): 7 min 50 seconds
• Recovery time from 135 PSI to 165 PSI: 1 min 19 seconds
• Maximum Operating (ambient) Temperatures: 36°F to 108°F
• Duty Cycle: 100% (no more than 8 hours)
• Tank Capacity: 80-gallon steel air tank (ASME certified)
• Plug Type: NEMA L6-30P / Receptacle: NEMA L6-30R
• Maximum Tank Pressure: 165 PSI
• Weight: 328 lbs
• Dimensions (LxWxH): 35" x 28" x 68"
• Warranty: 2-Year Limited Warranty on Pump; 1 Year Limited Warranty on all other components
• Manual Ball Drain Valve
• Power On/Pressure Switch
• Motor Thermal Overload Protector (trips @ 135°C)
• 200 PSI Safety Relief Valve
• Pressure Gauge
• 1/2" NPT Output Air Port
  • NOTE! 1/2" Output Ball Valve & Pressure Regulator NOT included.
• Continuous Run up to 8 hours maximum
• ASME Certified for Commercial Use
• Assembled in Mexico with global components
• Commercial Use: Refer to State & City Codes

Requirements

NOTE! Pressure Regulator NOT included - two available options:

OPTION 1:
Complete 120 PSI Pressure Regulator Assembly w/ Gauge (1/4" NPT Quick- Connect Output) available separately for purchase: CLICK HERE TO VIEW.

OPTION 2:
1/2" NPT Ball Valve (Air Output) available separately for purchase:
125 PSI Pressure Regulator (1/2" NPT Output) with Micro Mist separator available separately for purchase:
- Additional adapters may be required depending on setup/configuration.

Extra Details

NOTE: If you currently own the 80050BD model and would like to install an Automatic Drain, it is suggested to purchase the EZ2321ADL Automatic Drain Valve Long Extension Kit. Designed to eliminate manually draining water and condensate from air compressor air tanks. Easily Installable. All adapters and connectors are included in kit.
