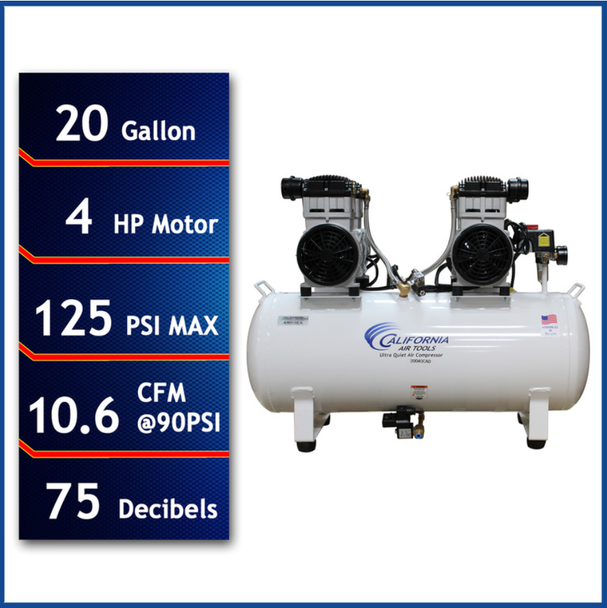

New California Air Tools Ultra-Quiet, Oil-Free Air Compressor with Automatic Drain Valve, 4 HP #1163CA

The California Air Tools 20040CAD Ultra Quiet, Oil-Free Air Compressor with Automatic Drain Valve is designed to be one of the industry's quietest 4 HP air compressors, with only 75 decibels of sound. The powerful 2.0 HP (SP-9421-22060) twin motors operate at just 1,680 RPM creating less noise and less wear. Designed for the user looking for power, airflow, and less service and maintenance with at least 30% less noise!

The "SP" series of ultra-quiet air compressor motors have been designed to increase duty cycle and allow for longer continuous run times (i.e. 5.3 CFM @ 90 PSI, or up to 30-40 minutes at a time, at 10.6 CFM @ 40 PSI).

The 20040CAD air compressor has an oil-free, dual-piston pump engineered for high performance and durability and designed to have a life cycle of 3,000+ hours compared to 1,500 hours or less for other comparable air compressors. The oil-free pump allows for use in a wide variety of temperatures and uneven terrains.

The large 20-gallon steel air tank is lightweight and easy to move around and is just the right size for the garage or shop.

Specifications

• HP: 4 HP (twin 2 HP motors)
• Decibel Rating: ultra-quiet, only 75 dB
• Pump Type: twin oil-free, direct-drive, twin-cylinder (cleaner air for better tool operation)
• Max PSI: 125 PSI
• CFM Delivery: 12.80 CFM @ 40 PSI / 10.60 CFM @ 90 PSI
• Voltage: 220V/60 Hz/Single-Phase (No 208 Volts - if necessary, obtain 208 to 220 voltage booster)
• Amperage: Low amp draw - 14 amps
• Time to fill tank from empty to full: 150 Seconds
• Recovery time from 95 PSI to 125 PSI: 40 Seconds
• Duty Cycle: 70/30
• Tank Capacity: 20-gallon steel air tank (non-ASME)
• Weight: 148 pounds
• Dimensions (LxWxH): 39" x 15" x 28"
• Warranty: 1-year limited

Extra Details

• EZ-1-2301 Auto Drain Valve Factory Installed
• Two pressure control gauges
• One female industrial "Push to Connect" quick connectors
• Thermal Overload Protector
• Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
• Maximum continuous running 30-60 min. (depending on PSI & CFM)
• Less heat which dissipates more efficiently
• Comes complete with four (4) air filters
• Commercial Use: refer to state & city codes
• Assembled in USA with global components

Extras

EZ-1-2321 Auto Drain Valve Factory Installed

The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate having to manually drain your air tank.

The manually set timer allows you to set the time for both the frequency and duration of the draining process (factory pre-set).
