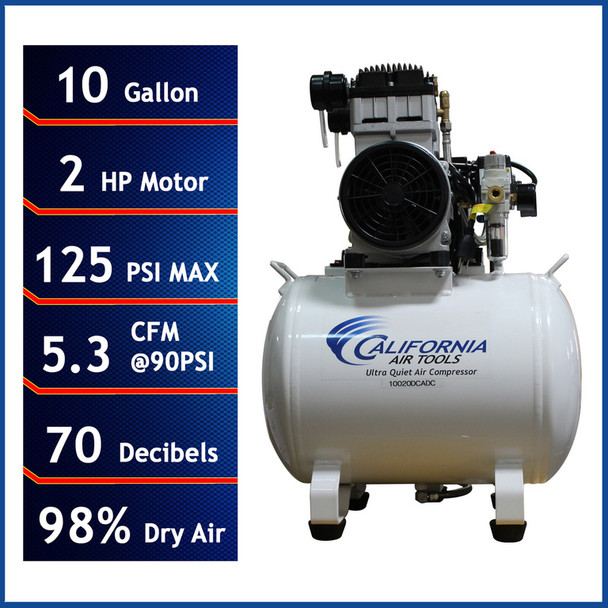

California Air Tools Ultra Quiet, Ultra Dry, Oil-Free Air Compressor with Automatic Drain Valve, 2 HP #116442

The California Air Tools 2 HP Ultra-Quiet, Ultra-Dry, Oil-Free Air Compressor with 98% air drying system and automatic drain valve is designed to be one of the industry's quietest 2 HP air compressors, with only 70 decibels of sound. The powerful 2.0 HP motor operates at just 1,680 RPM creating less noise and less wear. Designed for the user looking for power, airflow, and less service and maintenance with at least 30% less noise!

The "SP" series of ultra-quiet air compressor motors have been designed to increase duty cycle and allow for longer continuous run times.

The oil-free, dual-piston pump is engineered for high performance and durability and designed to have a life cycle of 3,000+ hours compared to 1,500 hours or less for other comparable air compressors.

The large 10-gallon horizontal steel air tank is just the right size to fit under a bench, desk, or cabinet.

The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery.

PDP performance range (-20° F. to -51° F.)
Air Quality: ISO 8573 - Class 2.3.1

The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the 98% Air Dryer.

The easy-to-replace "spin-on" air dryer cartridges have a regenerating high-temperature molecular sieve desiccant to dry the air. This cartridge dryer has an average life of 2-years before replacement.

The EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process.

Designed for the person looking for power, 98% dry air with a low dew point, airflow, and less service with at least 30% less noise! Ideal for dental, milling, surgical, manufacturing clean rooms, restaurants, and general engineering applications.

Specifications

• HP: 2 HP
• Decibel Rating: ultra-quiet, only 70 dB
• Pump Type: oil-free, direct-drive, twin-cylinder (cleaner air for better tool operation)
• Max PSI: 125 PSI
• CFM Delivery: 6.40 CFM @ 40 PSI / 5.30 CFM @ 90 PSI
• Voltage: 110V/60 Hz/Single-Phase (No 208 Volts - if necessary, obtain 208 to 220 voltage booster)
• Amperage: 14 Amps
• Time to fill tank from empty to full: 120 Seconds
• Recovery time from 95 PSI to 125 PSI: 25 Seconds
• Duty Cycle: 70/30 - (i.e. may run continuously at 2.1 CFM @ 90 PSI for up to 4 hours, or intermittently at 5.3 CFM @ 90 PSI during standard work day. Do not allow motor to run continuously for more than 60 minutes.)
• Tank Capacity: 10-gallon steel air tank (non-ASME)
• PDP performance range: (-20° F. to -51° F.)
• Air Quality: ISO 8573 - Class 2.3.1
• Weight: 100 pounds
• Dimensions (LxWxH): 20" x 28" x 26"
• Warranty: 1-year limited

Extra Details

• 0.01 Micron Prefilter
• Two pressure control gauges
• One female industrial "Push to Connect" quick connectors
• Thermal Overload Protector
• Maximum continuous running 30-60 min. (depending on PSI & CFM)
• Less heat which dissipates more efficiently
• Comes complete with two (2) air filters
• Air Dryer Cartridge uses two (2) High-Temperature Molecular Sieve Desiccant Towers
  • Easy to remove (spin off) and replace every 2 years
• Aftercooler (condenser)
• PDP performance range (-20°F. to -51° F.)
• Air Quality: ISO 8573 - Class 2.3.1
• EZ-1-2321 Auto Drain Valve Factory Installed
• Non-ASME air tank
• Commercial Use: refer to state & city codes
• Assembled in USA with global components

Manuals

Click here to download the 10020HDCADC owner's manual

Click here to download the EZ-1 Automatic Drain Valve owner's manual

Click here to download the Ultra Dry Service Kit service manual

Click here to download the Quick Start Guide

Click here to download Air Quality classes definitions in ISO 8573

Extras

Easy Start Valve Feature:

The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.

The EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process.
