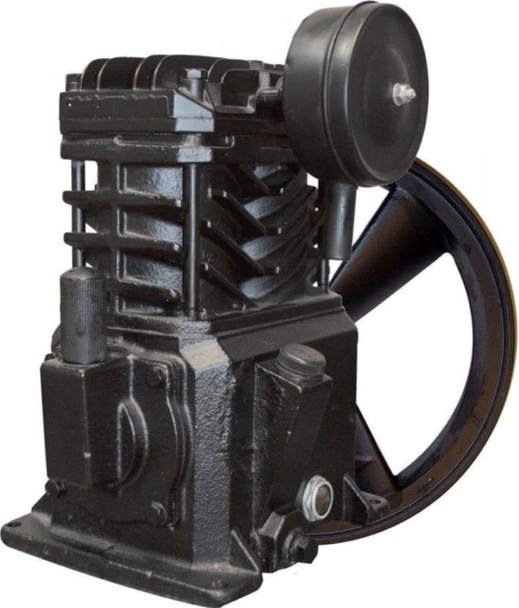

VT4923 Air Compressor Pump Replacement, Complete Assembly, 2 - 3 HP, Single-Stage #01AAE1
- Shipping:
- Calculated at Checkout
Description
Complete air compressor pump replacement with flywheel and air filter assembly. 2 - 3 HP. Has a 55mm stroke. Campbell Hausfeld VT2030, VT4723, VT4923 Twin Cylinder VT Pump. Recommended for 240V and gas units.
Note: New style pump has only one air line coming off of pump head. If your original pump had two outlets, order our CTD1238ADAPTKIT which will allow you to re-route the smaller bleeder line.
If your old pump had a ribbed belt flywheel, you can simply reuse the old ribbed belt flywheel and put it on your new pump.
Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.
Specifications
- HP: 2 HP to 3 HP
- Stage: Single-Stage
- Free Air CFM @ Max Pressure: 4.9 CFM (2 HP)/ 7.9 CFM (3 HP)
- Max PSI: 135 PSI
- Material of Construction: cast iron with steel sleeves
- Flywheel: 10" OD Single "A" groove (4L-style), 3/4" ID
- RPM: Min. RPM = 900 / Max. RPM = 1,200
- Oil: 8.5 oz. oil capacity
- Weight: 30 lbs.
- Bolt Pattern: 6.56" front-to-back, 5.88" side-to-side
- Bore & Stroke: 2-3/4" bore and 2" stroke
- Duty Cycle: 80/20
- Dimensions (LxWxH): 10.25" x 7.0" x 11.25"
- Outlet: 3/8" FPT (exhaust on the left side of the pump head, when looking opposite the flywheel)
- Warranty: 1 year limited from the date of purchase
7 Reviews
-
It works better than the original pump
I made a few modifications to the original safety shroud, installed the new pump, and it worked perfectly.
-
VT4923 Air Compressor Pump Replacemnt
Works perfectly! Excellent service as well. Prompt shipping! Thank you!!!
-
Replacement pump
The pump on my Campbell Hausfeld pump seized. This replacement pump was the perfect . It made economical sense to replace the pump. Living in Canada, even with the dollar exchange, it was less than 1/4 the cost of a new 60 gallon compressor. The pump has a few design changes from the original, but it installed without any need for adaptations.
-
Replacement pump
The pump on my Campbell Hausfeld pump seized. This replacement pump was the perfect . It made economical sense to replace the pump. Living in Canada, even with the dollar exchange, it was less than 1/4 the cost of a new 60 gallon compressor. The pump has a few design changes from the original, but it installed without any need for adaptations.
-
Compressor
The compressor does it's job just as it should, and price and communications with Master Tool excellent.
