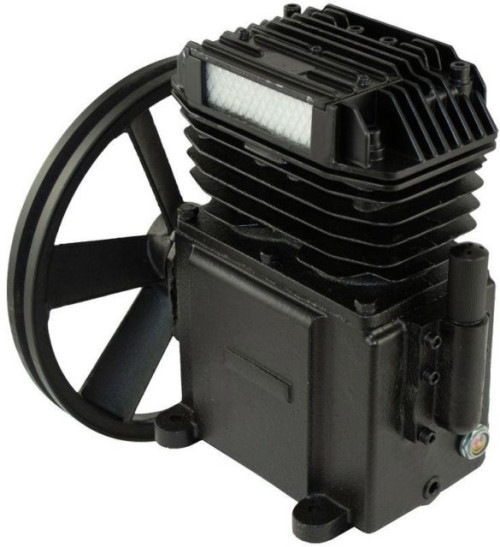

Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 755H, 3.7 HP #059770

E105996 Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 3.7 HP. 755H Cast-Iron Pump with Flywheel and Felt Air Filter. Oil-bath pump.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP Rating: 3.7 HP
• Stages: Single-Stage
• Drive: Reciprocating / Oil-Bath
• CFM Delivery: 13.4 CFM @ 40 PSI / 11.5 CFM @ 90 PSI
• Max PSI: 155 PSI
• Material of Construction: cast iron with steel sleeves
• Flywheel: 12" OD / single "A" groove
• RPM Range: 1,100 / 1,200
• Oil Capacity: 29 oz.
• Weight: 46 lbs.
• Bore & Stroke: 2.95" x 1.97"
• Dimensions (LxWxH): 12.35" x 7.0" x 12.22"
• Bolt Pattern: 5.74" (front-to-back) / 5.88" (side-to-side)
• Outlet: 3/8" FPT (exhaust on the right side of the pump head when looking at the front of pump opposite the flywheel)
• Warranty: 1 year limited from the date of purchase
