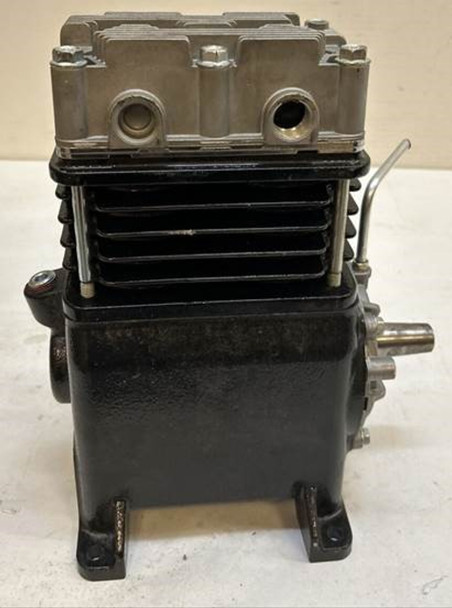

Air Compressor Pump Replacement without Flywheel, Single-Stage, 2 HP, i11 #05AAE9

Air compressor pump replacement, single-stage, 2 HP, i11. Just bolt on, install your old flywheel, add oil, then install your belt and discharge tube.

Note: Does not include flywheel. Order a new flywheel, if needed.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP: 2 HP
• Stages: Single-Stage
• Drive: Reciprocating / Oil-Bath (splash-lubricated)
• CFM Delivery: 6.2 SCFM @ 90 PSI
• Max PSI: 200 PSI
• Material of Construction: cast Iron with aluminum sleeves
• Flywheel: 12.0" OD single "A" groove (not included)
• Oil Capacity: 16 oz.
• Weight: 27 lbs.
• RPM: 2,000 max
• Bore & Stroke: 2.677" / 1.500"
• Dimensions (LxWxH): 10.47" x 6.77" x 12.13"
• Bolt Pattern: 5.74" (front-to-back) / 5.88" (side-to-side)
• Outlet: 3/8" FPT (exhaust on the right side of the pump head when looking at the front of pump opposite the flywheel)
• Warranty: 1 year limited from the date of purchase
