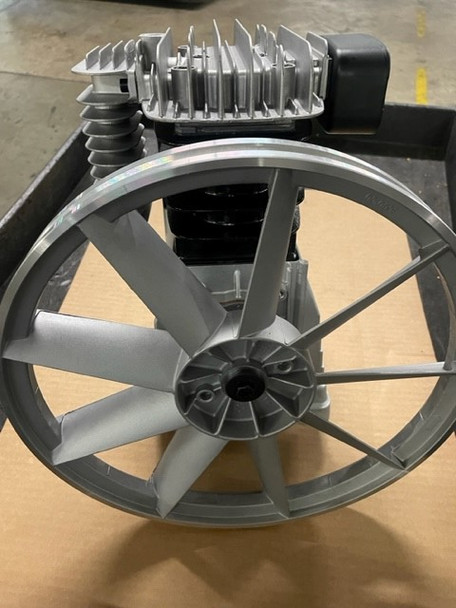

B3800 Air Compressor Pump Replacement, Complete Assembly with Aftercooler, Single-Stage, 3 - 5 HP #05C6BA

B3800 in-line, twin-cylinder, single-stage air compressor pump. Includes finned aftercooler and flywheel. Head is turned 180° (on the right side of the head when looking opposite the flywheel) from standard B3800 pump for Central Pneumatic units, such as the 68140.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP: 3 HP to 5 HP
• Stages: Single-Stage
• CFM Delivery: 7.41 CFM @ 100 psi with 5 HP motor
• Max PSI: 130 PSI
• Material of Construction: aluminum with steel sleeves
• Flywheel: N/A
• RPM: 700 Min / 1,450 Max
• Oil Capacity: 1.12 qts.
• Weight: 24 lbs.
• Bore & Stroke: 2.36" x 1.97"
• Dimensions (LxWxH): 13.0" x 11.38" x 13.56"
• Bolt Pattern: 5.5" front-to-back, 6.19" side-to-side
• Warranty: 1 year limited
