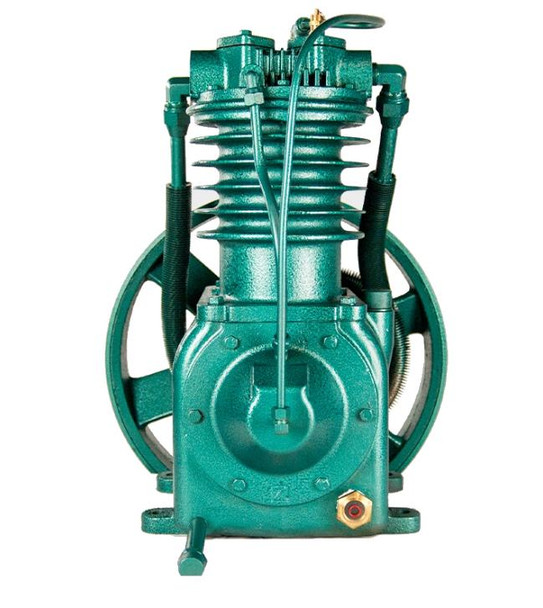

Kellogg R332 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 3 - 5 HP #0187A2

R332 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 3 - 5 HP. Ready to bolt on. Usually for start/stop electric motor powered units. Import version 332 Kellogg pump.

Note: This pump does not include head unloaders for constant-run systems.

• Cast Iron Construction
• Slower Speed (345-668 RPM) for longer life
• Longer stroke to produce as much as the 335
• Steel Rods with Automotive Type Inserts and Needle Bearings at Wrist Pins
• Positive Ring Fed Lubrication

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP Rating: 3 to 5
• Stages: Two-Stage
• Drive: Reciprocating / Oil-Bath
• CFM Delivery: 20.2 Displaced CFM @ 100 PSI (5 HP) / 17.2 Displaced CFM @ 175 PSI (5 HP)
• Max PSI: 200 PSI
• Material of Construction: cast iron with steel sleeves
• Flywheel: 18" OD / three "B" groove
• RPM Range: 345 / 668
• Oil Capacity: 2 qts.
• Weight: 200 lbs.
• Bore & Stroke: 4.75" x 4" (LP) / 2.5" x 4" (HP)
• Dimensions (LxWxH): 21-3/32" x 10-5/8" x 23"
• Bolt Pattern: 6-1/4" (front-to-back) / 10-5/8" (side-to-side)
• Outlet: 3/4" FPT
• Warranty: 1 year limited

Warranty Terms:

1. Ship the pump directly to the manufacturer where it will be disassembled and repaired. Customer is responsible for ALL shipping costs and labor involved with the repair.
2. Customer can choose to break the pump down, diagnose the problem, and repair it. Customer pays for shipping of the required repair parts.
3. Customer can purchase another pump and send the damaged pump back to the manufacturer for repair. Once it’s repaired, the manufacturer will ship it back to the customer. The customer is responsible for ALL shipping costs.
