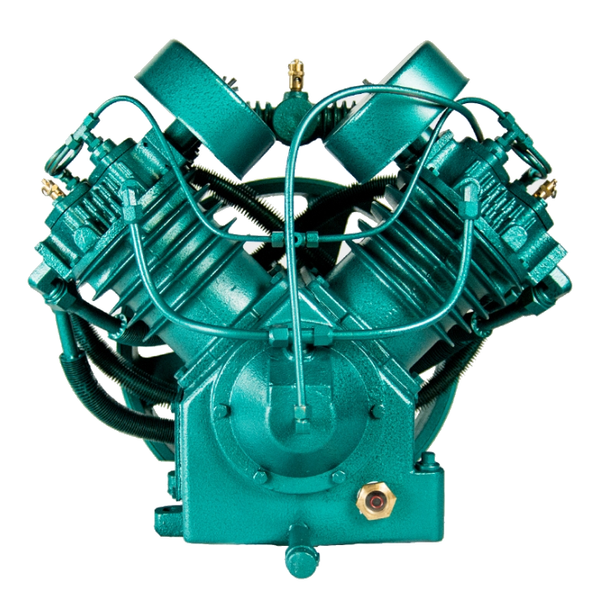

Kellogg 452TVX Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 7.5 - 10 HP #0196F5

Complete Kellogg 452 air compressor replacement pump assembly, ready to bolt on. 7.5 - 10 HP. Has head unloaders. Can be used for start/stop or constant-run (gas-powered) units.

• Slow speed (730 RPM)
• Steel rods with automotive-type inserts and needle bearings at wrist pins
• Positive ring-fed lubrication
• Centrifugal unloading
• Head unloading

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

HP Rating: 7.5 to 10 HP
Stages: Two-Stage
Drive: Reciprocating / Oil-Bath, 4-cylinder v-twin
CFM Delivery: 28 Displaced CFM @ 175 PSI (7.5 HP) / 35.2 Displaced CFM @ 175 PSI (10 HP)
Max PSI: 200 PSI
Material of Construction: cast iron with steel sleeves
Flywheel: 18" OD / three "B" groove
Output Shaft Size: 1-3/8" OD x 4-1/4” (+/-)
RPM Range: 590 / 846
Oil Capacity: 4 qts.
Weight: 275 lbs.
Bore & Stroke: 4.75" x 3" (LP) / 2.5" x 3" (HP)
Dimensions (LxWxH): 18-5/8" x 22-3/4" x 17-3/8"
Bolt Pattern: 6-1/4" (front-to-back) / 10-5/8" (side-to-side)
Outlet: 3/4" FPT
Warranty: 1 year limited

Warranty Terms:

1. Ship the pump to the manufacturer. It will be disassembled and repaired. Customer will be responsible for ALL shipping costs and labor involved with the repair.
2. Customer can choose to break the pump down, diagnose the problem, and repair it. Customer pays for shipping of the required repair parts.
3. Customer can purchase another pump and send the damaged pump back for repair. Once it’s repaired, the manufacturer will ship it back to the customer. The customer is responsible for ALL shipping costs.
