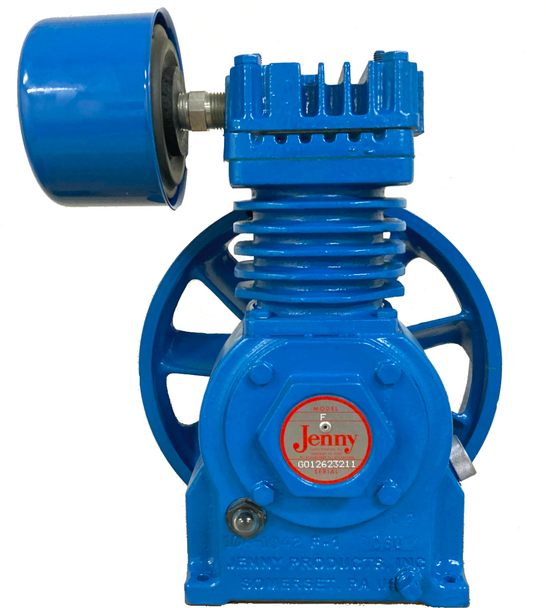

F Pump Modified with Stainless-Steel Valves, Air Compressor Pump Complete Assembly, 1/3 - 1 HP #11672C

Modified Jenny "F" model pump with stainless-steel valves for corrosive and outdoor environments.

Includes flywheel, automotive-style air filter assembly, and one quart of Jenny Synthetic Blue compressor oil. Ready to bolt on and run, just add oil. Rated to a maximum pressure of 275 PSI.

If you're looking for the standard F pump, click here.

This is a modified F pump, with the following modifications:

• Replaces the standard steel valves with Stainless-Steel Valves
• As well as upgrading to Galvanized Valve Plate, Head, and Cylinder
• These changes are made to help prevent rust in outdoor and corrosive environments

Highly recommended as an upgrade to air compressor systems such as:

• Fire Sprinkler air compressors
• Climate Control air compressors
• Contractor air compressors, such as smaller shop compressors and light industrial applications
• The air compressor upgrades help prevent corrosion and rust for any air compressor that is exposed to a harsh environment

• HP: 1/3 to 1 HP
• CFM Delivery: 3.1 CFM @ 125 PSI with 3/4 HP motor
• Max PSI: 275 PSI
• Material of Construction: cast iron with steel sleeves / stainless-steel valves and galvanized head, valve plate, and cylinder for corrosive environments
• Flywheel: 10-3/8" OD Single "A" groove
• RPM: Min. RPM = 710, Max. RPM = 1100
• Oil: 11 oz. oil capacity
• Weight: 36 lbs.
• Dimensions (LWH): 7-3/4" x 10-3/8" x 11-1/2"
• Bolt Pattern: 3-3/8" front-to-back, 5-9/16" side-to-side
• Bore & Stroke: 2" bore and 1.75" stroke
• Outlet: 3/8" FPT
