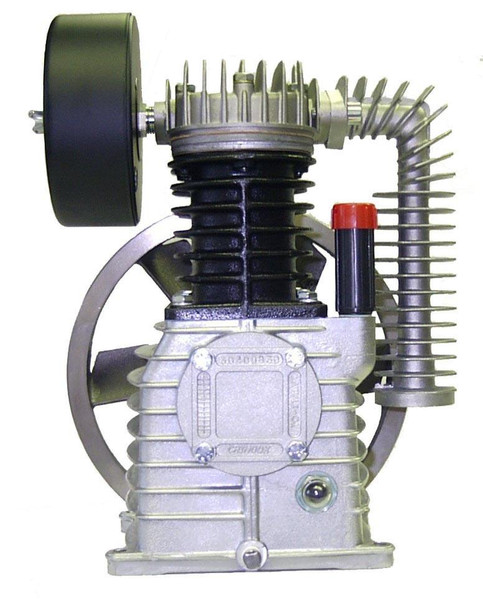

Rolair K17 Air Compressor Pump Replacement, Complete Assembly, Single-Stage, 1.5 - 3 HP #07F89A

K17 pump assembly with flywheel. Up to 11.11 CFM with 3 HP motor. Cast iron cylinders. Reliable workhorse found on most contractor models. Save money by using your old flywheel and aftercooler. Includes air filter assembly. Does NOT ship with oil.

Important: A model number is required when ordering this pump so that the head outlet is set up on the correct side prior to shipping. Failure to choose the correct model number will result in an incorrect configuration being shipped to you and result in new gaskets being needed to change this once it arrives at your destination.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP Rating: 1.5 - 3 HP (5.5 HP gas)
• Stages: Single-Stage, In-Line Twin-Cylinder
• Drive: Reciprocating / Oil-Bath
• CFM Delivery: 9.91-14.86 CFM (Displaced) / 6.74-10.10 CFM @ 100 PSI (Delivered)
• Max PSI: 150 PSI
• Material of Construction: cast-aluminum with steel sleeves
• Flywheel: 11.02" OD, single "A" groove
• RPM Range: 1,000 / 1,250
• Oil Capacity: 34 oz
• Weight: 33.1 lbs.
• Bore & Stroke: 2.52" x 1.97"
• Dimensions (LxWxH): 10.24" x 11.5" x 14.17"
• Bolt Pattern: 5.19" (front-to-back) / 7.08" (side-to-side)
• Outlet: 1/2" FPT
• Warranty: 1 year limited
