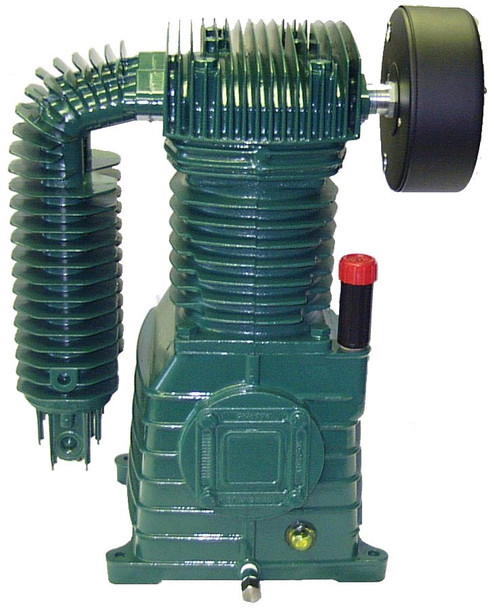

Rolair K30 Air Compressor Pump Replacement without Flywheel, Two-Stage, 5 - 7.5 HP #07F894

For gas engine powered units. Flywheel is not included, must use your old flywheel. Includes air filter assembly. Add oil, bolt on and go! Oil Capacity = 47 oz. (not included).

Note: Please specify your model number in the comments section of your order when ordering to receive correct setup.

Need oil? Click here for synthetic and synthetic-blend air compressor oil to keep your compressor running like new for years to come.

• HP Rating: 5 - 7.5 HP
• Stages: Two-Stage
• Drive: Reciprocating / Oil-Bath
• CFM Delivery: 16.01 - 23.63 @ 175 PSI (5 HP)
• Max PSI: 175 PSI
• Material of Construction: aluminum with steel sleeves
• Flywheel: 15.16" OD / twin "A" groove (not included)
• No Head Unloaders
• RPM Range: 800 / 1,200
• Oil Capacity: 47oz
• Weight: 45 lbs.
• Bore & Stroke: 4.13" x 3.31" (LP) / 2.05" x 3.31" (HP)
• Dimensions (LxWxH): 14.17" x 16.33" x 18.70"
• Bolt Pattern: 7.48" (front-to-back) / 8.97" (side-to-side)
• Outlet: 1/2" FPT (Exhaust on the right side of the pump head when looking at the front of pump opposite the flywheel)
• Warranty: 1 year limited
